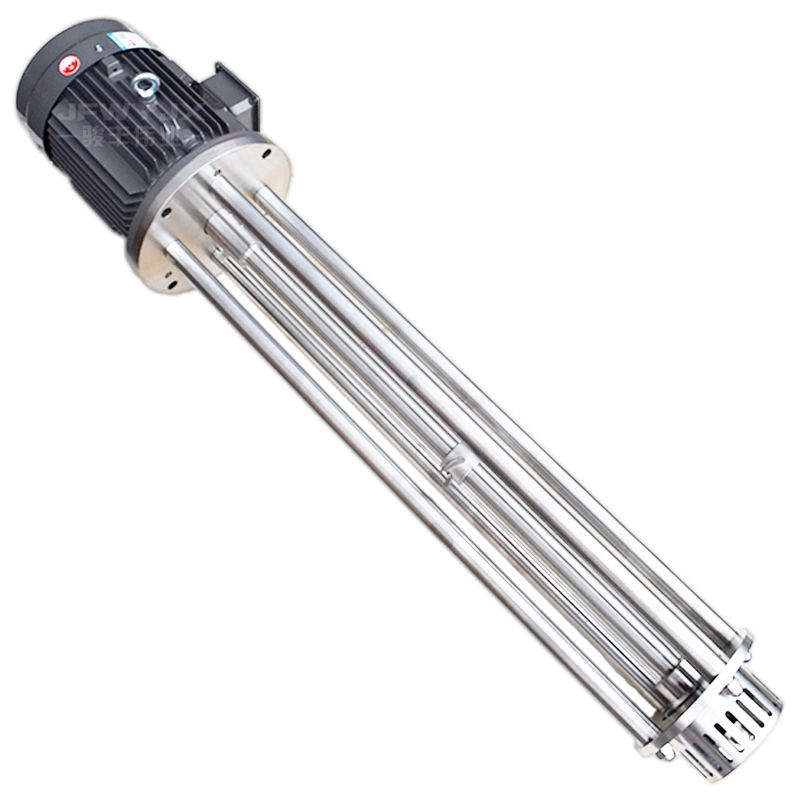

Food, dairy, juice and beverage high-shear homogenization and emulsification machine 7.5KW high-speed shear and emulsification head

Emulsifier is connected with the engine through the high-speed rotation of the homogenization head, the material shear, dispersion, impact.
WRL type high shear homogeneous emulsifying machine produced by Ningbo Junfeng Weiye Machinery Co., Ltd. is a vertical installation emulsifying equipment. Stator and rotor are designed as claw coupling structure, materials are sucked from the upper and lower parts of the main machine at the same time, and thrown out to the periphery centrifugally, the shearing homogenization efficiency is doubled, and the problem that the upper materials in the kettle are easy to produce dead corners is avoided. The product is suitable for homogenization, fine and emulsification in various large and small reaction kettles and ordinary containers. Small-volume emulsion can also be mobile lifting use.
According to the function and use form, it is divided into the following categories:
High shear emulsifying machine: high shear force generated by high speed rotation of stator and rotor

High shear dispersion emulsification machine: in the material for high-speed shear at the same time also play a role in the dispersion of materials

High shear mixer emulsifier: mixing materials while shearing them,

Emulsifier Homogenizer: Emulsifying materials and homogenizing them at the same time

Mobile emulsifying machine: mainly according to the needs of some factory production, the emulsifying machine is equipped with mobile lifting frame, customers can move and lift the emulsifying machine according to their own needs.
WRL intermittent high shear emulsifying machine working process steps:

WRL intermittent high shear emulsifying machine in the high-speed rotation of the rotor generated by the centrifugal force, the figure of the material from the top and bottom feeding area of the working head at the same time from the axial suction working chamber.

WRL intermittent high shear emulsifying machine strong centrifugal force will be the material from the radial swing set, the narrow precision gap between the rotor. At the same time, by centrifugal extrusion, impact and other forces, so that the initial dispersion of materials emulsified.

WRL intermittent high shear emulsification machine produces at least 15m/s linear velocity at the outer end of the rotor, up to 40m/s, and forms strong mechanical and hydraulic shear, liquid layer friction, impact tearing, so that the material is fully dispersed, emulsified, homogenized, broken, and injected through the stator slot.

WRL intermittent high-shear emulsification machine material continuously high speed from the radial injection, in the material itself and the resistance of the container wall to change the flow direction, and at the same time in the rotor area generated by the upper and lower axial suction force, and the formation of upper and lower two strong turbulent flow. After several cycles, the material finally completes the process of dispersion, emulsification and homogenization.

WRL series high shear dispersion emulsifying machine working principle:

WRL batch (vertical) high shear dispersion emulsifiers are efficient, fast and uniform distributions of one phase or phases into another continuous phase, which are normally insoluble in each other. Due to the high tangential speed generated by the high speed rotation of the rotor and the strong kinetic energy brought by the high frequency mechanical effect, the immiscible solid phase, liquid phase and gas phase are dispersed and emulsified uniformly and finely in an instant under the joint action of the corresponding mature technology and appropriate additives. After high frequency circulation, stable high quality products are finally obtained.
